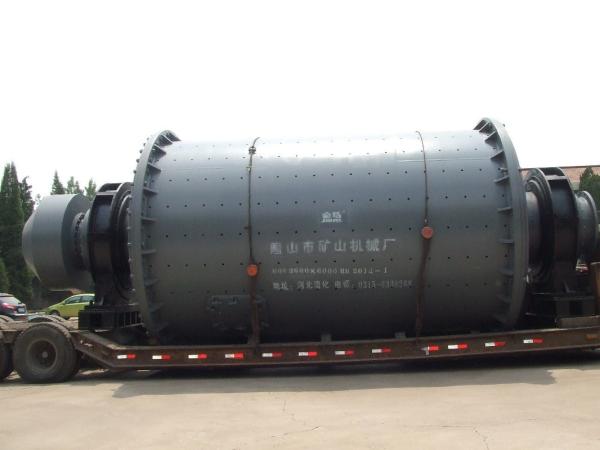

Grinding Ball Mill , 20mm Input Gold Mining Machine
STRUCTURE
This kind of ball mill consists of several parts including fillings entrance setup,main bearing,rotary part.transmission part, gear cover and so on. The tube which equipped with anti-friction sheathing board inside is welded of rolled steel plate. There is a hole on the tube for the use of the maintenance worker can get in and out to maintain or repair the machine.
PRINCIPLE
When the tube rotates, the filler and grinding medium rise to a certain height through the tube, and then fall or slide freely from the wall of the tube. It is made of dropped grinding medium, and its grinding and stripping activity is high.
| Name | Grinding Ball Mill , 20mm Input Gold Mining Machine |
| Model | Grinding Ball Mill |
| Input size | 20mm |
Technical Specifications and Performance
| Model(wet) | Rotating speed of cylinder | Input size(mm) | Motor Power(Kw) | Processing
Capacity(t/h) |
| | | | Tile | Bearing | |
| MQ1500*3000 | 33.3 | <=20 | 95 | 80 | 8-10 |
| MQ1500*6200 | 33.3 | <=20 | | 155 | 8-10 |
| MQ1600*4500 | 29.8 | <=20 | 130 | 130 | 7-14 |
| MQ1830*4500 | 26.25 | <=20 | 180 | 180 | 10-20 |
| MQ1830*7000 | 26.25 | <=20 | 245 | 245 | 10-20 |
| MQ1830*10000 | 26.25 | <=20 | | 320 | 10-20 |
| MQ2100*3000 | 24.6 | <=20 | 210 | 210 | 15-25 |
| MQ2100*4500 | 24.6 | <=20 | 245 | 245 | 15-25 |
| MQ2100*11000 | 24.6 | <=20 | | 570 | 15-25 |
| MQ2200*7000 | 23.7 | <=20 | | 380 | 20-35 |
| MQ2200*10000 | 23.7 | <=20 | | 500 | 20-35 |
| MQ2400*4500 | 22.6 | <=20 | 380 | 380 | 20-45 |
| MQ2400*8000 | 22.6 | <=20 | | 475 | 20-45 |
| MQ2400*10000 | 22.6 | <=20 | | 630 | 20-48 |
| MQ2700*3600 | 21.4 | <=20 | 475 | 380 | 25-50 |
| MQ2700*10000 | 21.4 | <=20 | | 1000 | 25-50 |
| MQ3200*6000 | 19.6 | <=20 | | 1000 | 30-60 |
| MQ3200*8000 | 19.6 | <=20 | | 1400 | 30-60 |
| MQ3600*4500 | 18.9 | <=20 | | 1250 | 35-82 |
| MQ3600*6000 | 18.9 | <=20 | | 1400 | 35-82 |
Our products include Φ2.2 to 4.8m series slip type, bearing type and double slide shoe high-fine cement mills and rotary kilns, 1.7m and above vertical mills, pre-grinding crushing mills, bag filters, cyclones, garbage carbide and digesting furnaces, combined garbage burning and hot water boilers, together with iron ore ball mills, crushers, magnetic separators, classifiers, powder concentrators, filters, conveyors and hoists of all sizes, including 17 certified national patent products, and are sold both in and out of China. Of all these products, the crusher and the ball mill have been honored ministry-level high-quality products, national famous metallurgical brand products, provincial famous brand products, inspection-exempted products granted by Hebei Bureau of Quality & Technology Supervision and provincial consumer-trusted products. The company has also been listed among the provincial quality performance enterprises, provincial star enterprises, provincial consumer trusted organizations, provincial advanced image constructors, provincial credible and law-observing enterprises and national excellent township business groups.
FAQ to save your precious time!
Q1: Hi, are you a mining machinery manufacturer?
Answer: Yes, we are a professional manufacturer of mining machine. Our company welcomes customers to visit our factory at any time.
Q2: How long is the warranty period of your equipment? Does your company provide spare parts?
Answer: The warranty period of our machine is one year. For those wearing parts, we guarantee to provide high-quality parts for a long time.
Q3: How long does it take to deliver?
Answer: Production usually starts after receiving the advance payment. Small machine is guaranteed to be delivered within one month. Large-scale machine is guaranteed to be delivered within 2-3 months.
Q4: Do you provide machine operation guidance?
Answer: Yes. We have professional engineers for installation, commissioning and operation guidance.
